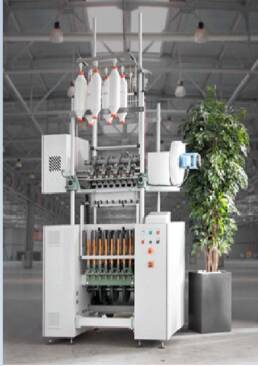

SPINHOLE LAB: Precision Spinning Machine for Advanced Laboratory Applications

Take your lab processes to the next level with SpinLab. Reliable, efficient, and built for today’s scientific demands.

SPINHOLE LAB Machine: Advanced Features, Robust Design, and Full Support

Transmission by motor-spindle.
Spindle stop by pneumatic system incorporated on bottom part of motor-spindle. Individual front rollers
Computer parameters are prepared to be easily adapted to customer specifications.
Fully independency in every spindles, number of twist, S/Z twist direction and front rollers speed.
We have always been specialized in making very robust and simply designed machinery. All sections have been carefully developed to be easy to operate and to avoid damage by intensive use
Laboratory test in Twistechnology to make trials with your own yarn.
Training and production advice from our specialized technicians to your staff.
Technical Support for any doubt, problem or new need at any time from our Technical Support Service.

BRAND NAME: SPINHOLE
TECHNOLOGY: MULTIBALLOON Patented Technology
TYPE: Ring spinning machine for short staples.
NUMBER OF SPINDLES: 8 on one side
RING SIZE: 36-51 mm diameter*
Spindle drive: by global motor, flat belt and SKF bearing*
Coil size: 200mm Length*
System draft: 3 ROLLERS type SKF 2023 arm pressure by air
Panel Control: Computer
Spindle: 27.000 rpm maxim mechanical speed
Creel included: 8 bobbins, one per spindle
SPECIAL Automatic draft movement for increasing the distance from the spindle to front rollers until 1,5 meters for increasing number of ballons.
Including Compact air system.
Creel: with 8 positions for roving bobbins and sliver bobbins.
Processing of all common fiber types: including cotton, polyester, polyamide, wool, blends, etc.
The following information is shown on the display: spindle RPM, partial draft, total draft, T/m, yarn speed in m/min.
Yarn counts to be spun: minimun Ne 8 to max Ne 120
Processable fiber lengths from min. 20 to 60 mm
